Emuge

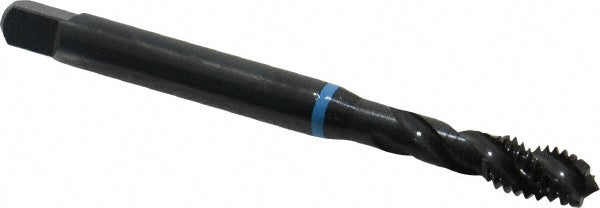

5/16-18 UNC Cobalt Tap, Oxide - Emuge BU503200.5010
MFR# BU503200.5010Series Enorm-VA
$48.57List $57.77
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingOxide
Description
The Emuge BU503200.5010 is a 5/16-18 UNC Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Threads per inch18
Thread directionRight Hand
Thread length0.5510
Thread size in5/16-18
Thread standardUNC
