Emuge

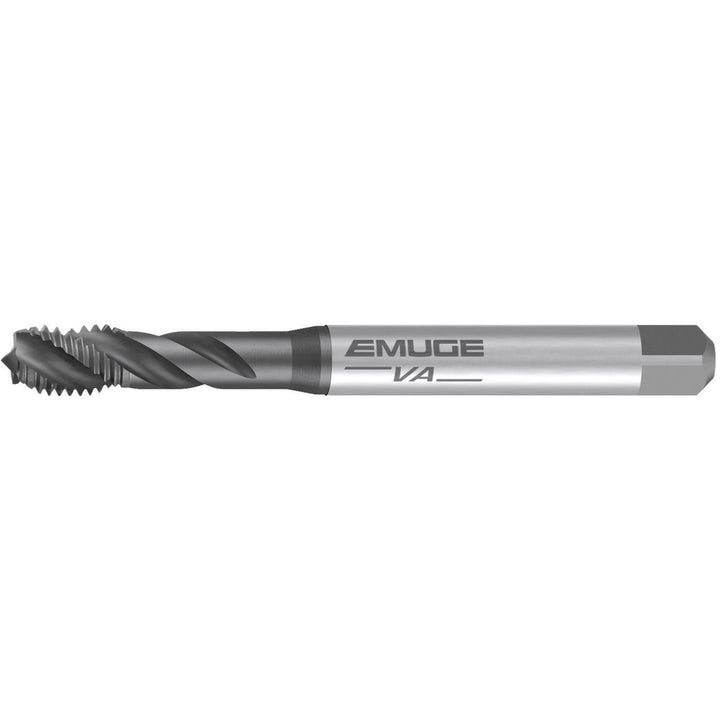

#8-36 UNF Cobalt Tap, Oxide - Emuge BU503210.5040
MFR# BU503210.5040Series Enorm-VA
$42.35List $50.38
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-36
CoatingOxide
Description
The Emuge BU503210.5040 is a #8-36 UNF Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes3
Overall length2.4800
OversizeNo
Shank diameter0.1680
Square size0.1310
Tapping depth0.8270
Threads per inch36
Thread directionRight Hand
Thread length0.3150
Thread size in#8-36
Thread standardUNF
