Emuge
5/16-24 UNF Cobalt Tap - Emuge BU513500.5044
MFR# BU513500.5044Series Enorm Z
$56.68List $67.42
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
Description

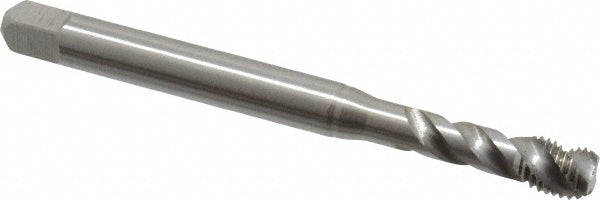

The Emuge BU513500.5044 is a 5/16-24 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.2600
Threads per inch24
Thread directionRight Hand
Thread length0.3940
Thread size in5/16-24
Thread standardUNF
