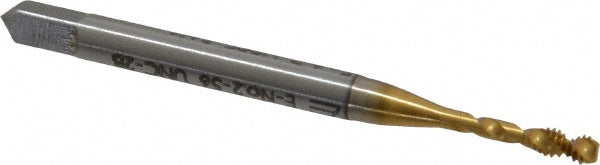

#2-56 UNC Cobalt Tap, TiN - Emuge BU513700.5001

Emuge

#2-56 UNC Cobalt Tap, TiN - Emuge BU513700.5001

MFR# BU513700.5001Series Enorm Z

$71.90List $85.53 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
Thread size#2-56
CoatingTiN

Description

The Emuge BU513700.5001 is a #2-56 UNC Cobalt tap with a TiN finish. 2 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes2
Overall length1.7720
OversizeNo
Shank diameter0.1410
Square size0.1100
Tapping depth0.4720
Threads per inch56
Thread directionRight Hand
Thread length0.1770
Thread size in#2-56
Thread standardUNC
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
