Emuge

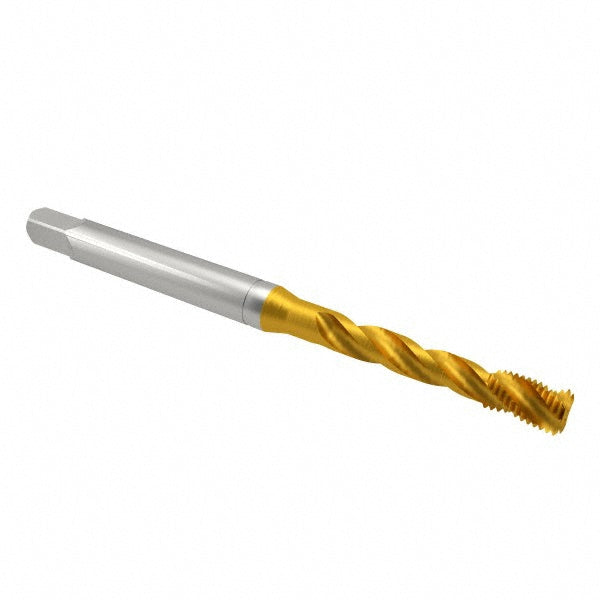

5/16-18 UNC Cobalt Tap, TiN - Emuge BU513700.5010
MFR# BU513700.5010Series Enorm Z
$67.44List $80.22
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiN
Description
The Emuge BU513700.5010 is a 5/16-18 UNC Cobalt tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Threads per inch18
Thread directionRight Hand
Thread length0.5510
Thread size in5/16-18
Thread standardUNC
