Emuge

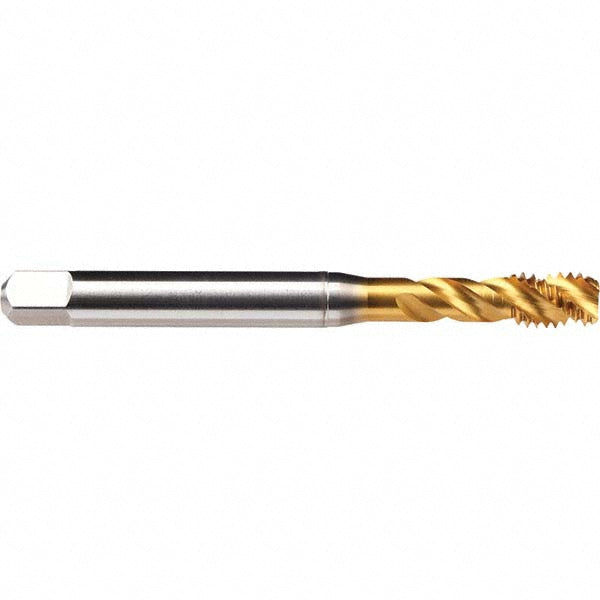

1/4-28 STI UNF Cobalt Tap, TiN - Emuge BU513710.5639
MFR# BU513710.5639Series BU513710
$71.63List $85.20
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiN
Description
The Emuge BU513710.5639 is a 1/4-28 STI UNF Cobalt tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coating finishTiN
MaterialCobalt
Material applicationStainless Steel; Steel
Number of flutes3
Overall length3.5430
Shank diameter0.3180
Square size0.3180
Tap size1/4-28
Threads per inch28
Thread length0.3571
Thread limitH2
Thread size in1/4-28
Thread standardSTI UNF
