Emuge

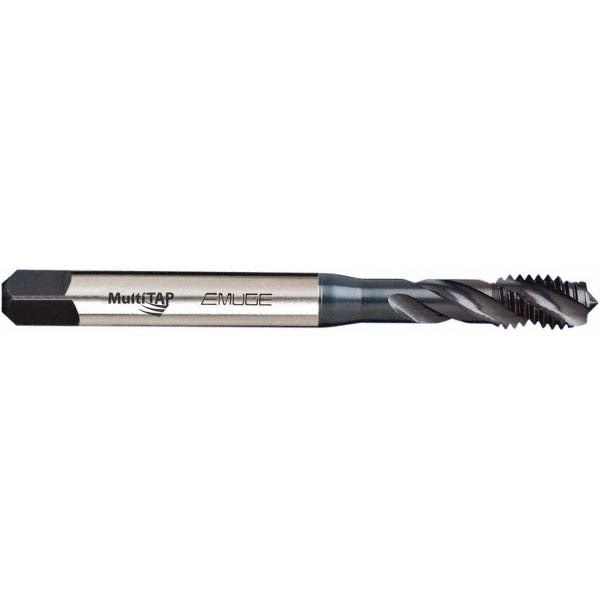

#8-32 UNC Vanadium High-Speed Steel Tap, Oxide - Emuge BU533200.5006
MFR# BU533200.5006Series Enorm
$22.72List $27.03
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingOxide
Description
The Emuge BU533200.5006 is a #8-32 UNC Vanadium High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle38
MaterialVanadium High-Speed Steel
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length2.4800
OversizeNo
Shank diameter0.1680
Square size0.1310
Tapping depth0.8270
Threads per inch32
Thread directionRight Hand
Thread length0.5120
Thread size in#8-32
Thread standardUNC
