Emuge

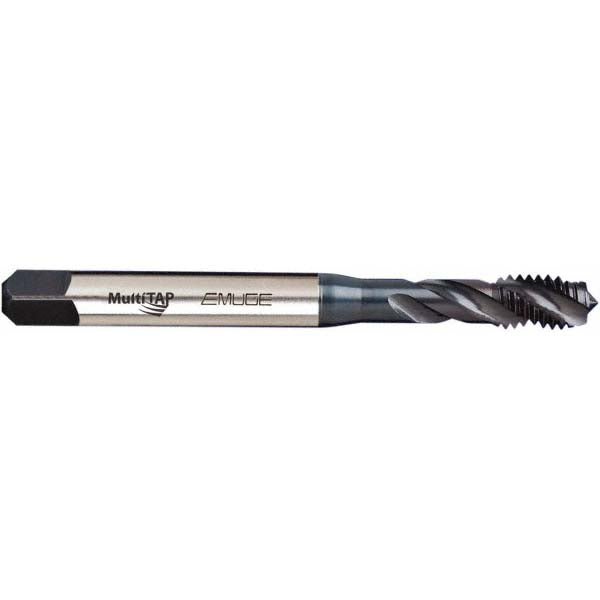

1/4-28 UNF Vanadium High-Speed Steel Tap, Oxide - Emuge BU533200.5043
MFR# BU533200.5043Series Enorm
$24.94List $29.66
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingOxide
Description
The Emuge BU533200.5043 is a 1/4-28 UNF Vanadium High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle38
MaterialVanadium High-Speed Steel
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Threads per inch28
Thread directionRight Hand
Thread length0.6690
Thread size in1/4-28
Thread standardUNF
