Emuge

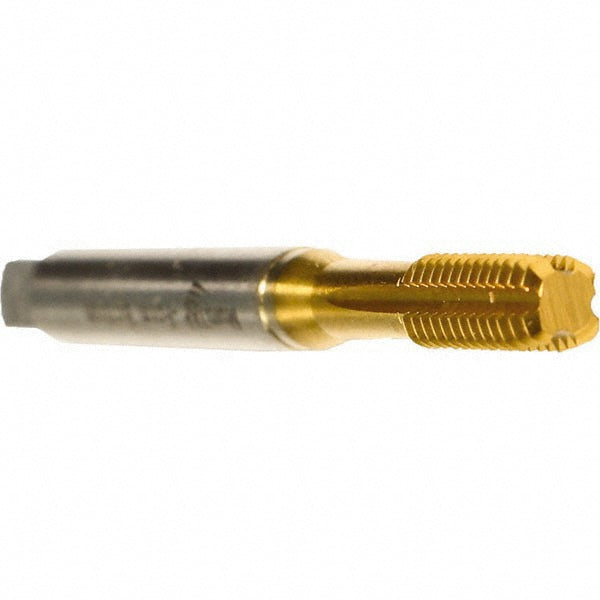

5/16-18 UNC High-Speed Steel-E Tap, TiN - Emuge BU591410.5010
MFR# BU591410.5010Series BU591410
$34.10List $40.56
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiN
Description
The Emuge BU591410.5010 is a 5/16-18 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.5433
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Thread directionRight Hand
Thread length0.7874
Thread size in5/16-18
Thread standardUNC
Trade nameInnoForm 1-MULTI/E-SN-TiN
