Emuge

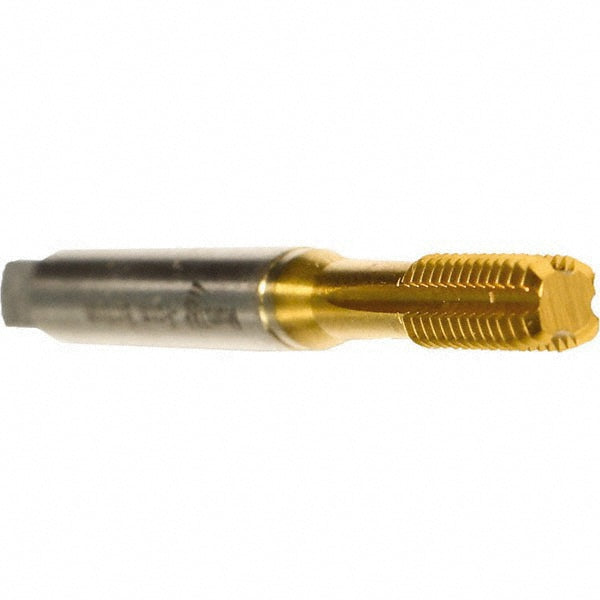

3/8-16 UNC High-Speed Steel-E Tap, TiN - Emuge BU591410.5011
MFR# BU591410.5011Series BU591410
$38.27List $45.52
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size3/8-16
CoatingTiN
Description
The Emuge BU591410.5011 is a 3/8-16 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.9370
Shank diameter0.3810
Square size0.2860
Tapping depth1.5354
Thread directionRight Hand
Thread length0.8661
Thread size in3/8-16
Thread standardUNC
Trade nameInnoForm 1-MULTI/E-SN-TiN
