Emuge

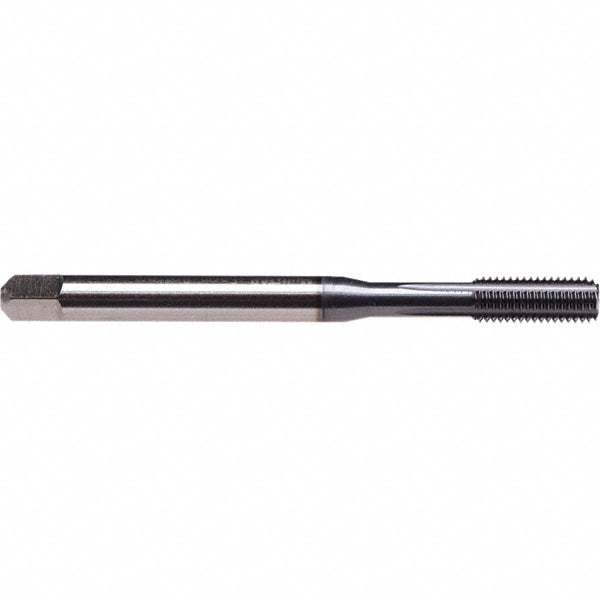

#8-32 UNC High-Speed Steel-E Tap, TiCN - Emuge BU599010.5006
MFR# BU599010.5006Series BU599010
$30.44List $36.21
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#8-32
CoatingTiCN
Description
The Emuge BU599010.5006 is a #8-32 UNC High-Speed Steel-E tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length2.4803
Shank diameter0.1680
Square size0.1310
Tapping depth0.8270
Thread directionRight Hand
Thread length0.5118
Thread size in#8-32
Thread standardUNC
Trade nameInnoForm 1-MULTI/E-SN-TiCN
