Emuge
#8-32 UNC High-Speed Steel-E Tap, TiN - Emuge BU921400.5006
MFR# BU921400.5006Series BU921400
$53.81List $64.00
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#8-32
CoatingTiN
Description

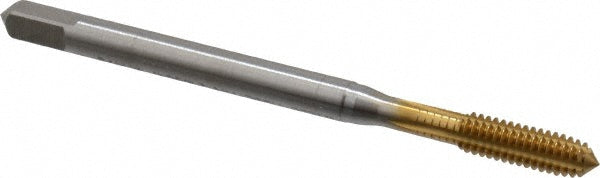

The Emuge BU921400.5006 is a #8-32 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length2.4803
Shank diameter0.1680
Square size0.1100
Tapping depth0.8270
Thread directionRight Hand
Thread length0.5118
Thread size in#8-32
Thread standardUNC
Trade nameDruck 1-STEEL-SN-TiN
