Emuge
5/16-18 UNC High-Speed Steel-E Tap, TiN - Emuge BU921400.5010
MFR# BU921400.5010Series BU921400
$73.52List $87.45
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiN
Description

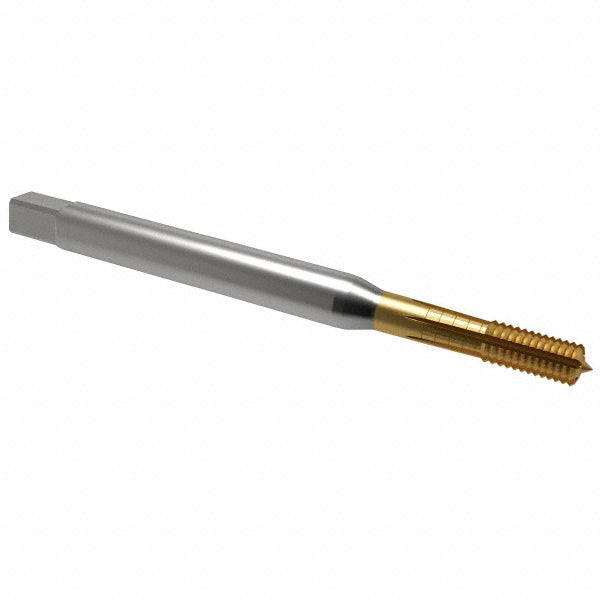

The Emuge BU921400.5010 is a 5/16-18 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.5433
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Thread directionRight Hand
Thread length0.7874
Thread size in5/16-18
Thread standardUNC
Trade nameDruck 1-STEEL-SN-TiN
