Emuge

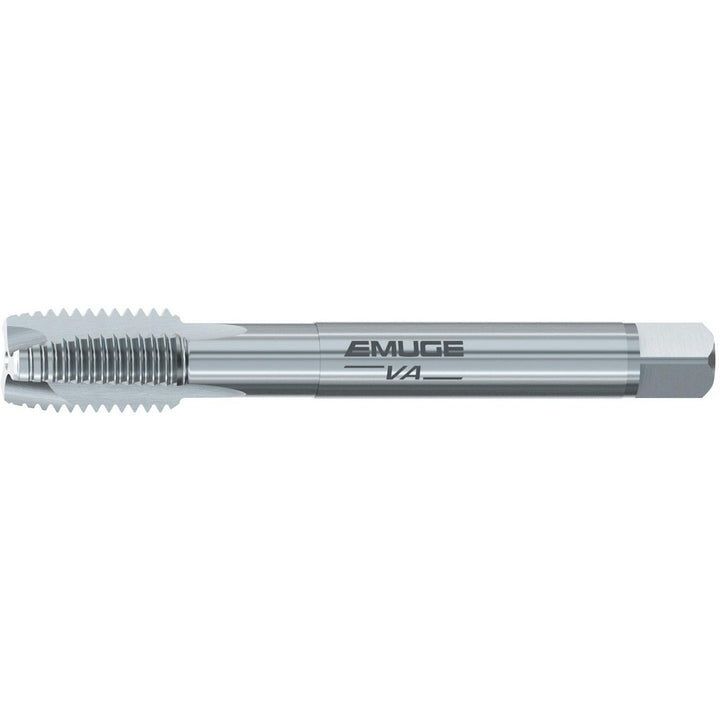

M24x3 Metric HSS-E Vanadium Spiral Point Tap, NT - Emuge C0203000.0124
MFR# C0203000.0124Series C0203000
$245.65List $292.19
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingNT
Description
The Emuge C0203000.0124 is a Metric HSS-E Vanadium Spiral Point tap with a NT finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishNT
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Vanadium
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length6.2990
OversizeNo
Shank diameter (mm)18.00
Square size (mm)14.50
StyleSpiral Point
Threads per inch8.47
Thread directionRight Hand
Thread length (mm)34.00
Thread pitch (mm)3
Thread size (mm)M24x3
Thread standardMetric
