Emuge

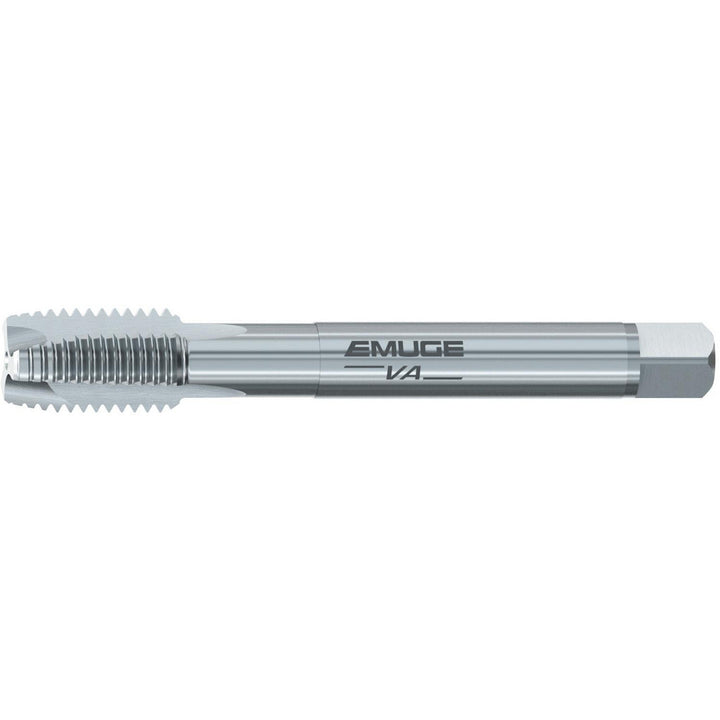

M30x3.5 Metric HSS-E Vanadium Spiral Point Tap, NT - Emuge C0203000.0130
MFR# C0203000.0130Series C0203000
$364.22List $433.23
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingNT
Description
The Emuge C0203000.0130 is a Metric HSS-E Vanadium Spiral Point tap with a NT finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishNT
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Vanadium
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Number of flutes4
Overall length7.0870
OversizeNo
Shank diameter (mm)22.00
Square size (mm)18.00
StyleSpiral Point
Threads per inch7.26
Thread directionRight Hand
Thread length (mm)40.00
Thread pitch (mm)3.5
Thread size (mm)M30x3.5
Thread standardMetric
