Emuge

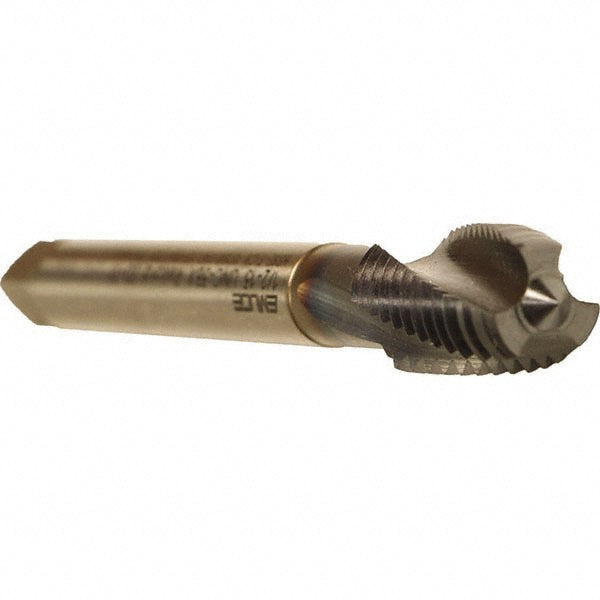

M12x1.75 Metric Cobalt Tap, TiCN - Emuge C0459601.0112
MFR# C0459601.0112Series Rekord D
$109.80List $130.61
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Emuge C0459601.0112 is a Metric Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationNon-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy
Number of flutes3
Overall length4.3307
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3543
Shank length3.3858
Square size (mm)7.00
Thread directionRight Hand
Thread length0.9449
Thread pitch (mm)1.75
Thread size (mm)M12x1.75
Thread standardMetric
