Emuge

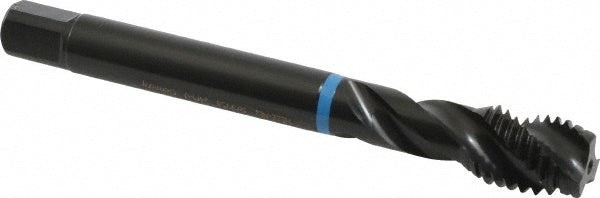

M14x2 Metric Coarse Cobalt Tap, Oxide - Emuge C0503200.0114
MFR# C0503200.0114Series Enorm-VA
$113.32List $134.78
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingOxide
Description
The Emuge C0503200.0114 is a Metric Coarse Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes3
Overall length (mm)110.00
OversizeNo
Shank diameter (mm)11.00
Square size (mm)9.00
Thread directionRight Hand
Thread length (mm)20.00
Thread pitch (mm)2.00
Thread size (mm)M14x2
Thread standardMetric Coarse
