Emuge

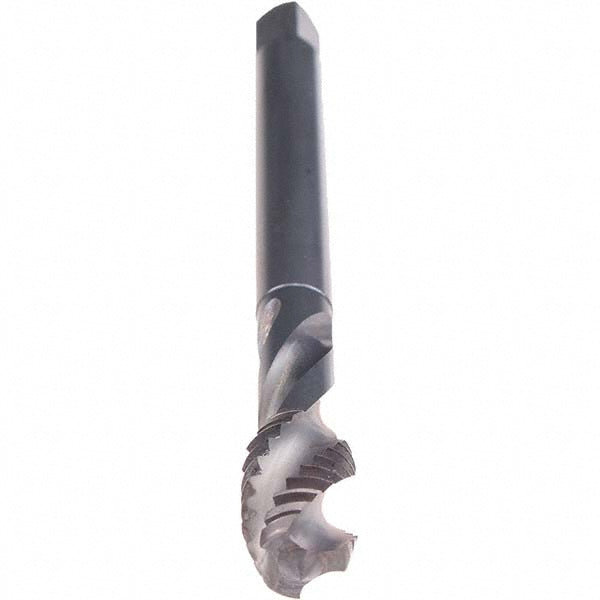

M16x1.5 Metric Fine Cobalt Tap, Oxide - Emuge C0503200.0359
MFR# C0503200.0359Series Enorm
$135.05List $160.63
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingOxide
Description
The Emuge C0503200.0359 is a Metric Fine Cobalt tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.4724
Shank length3.3465
Square size (mm)9.00
Thread directionRight Hand
Thread length0.5906
Thread pitch (mm)1.50
Thread size (mm)M16x1.5
Thread standardMetric Fine
