Emuge

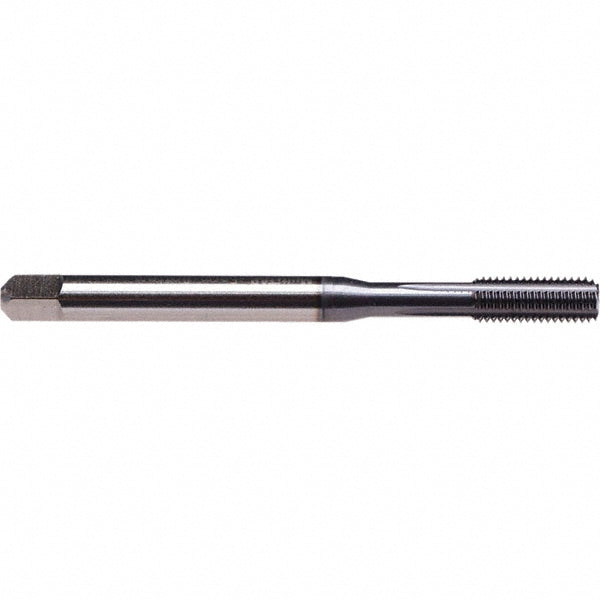

1/2-13 UNC High-Speed Steel-E Tap, TiCN - Emuge CU039010.5013
MFR# CU039010.5013Series CU039010
$68.13List $81.03
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-13
CoatingTiCN
Description
The Emuge CU039010.5013 is a 1/2-13 UNC High-Speed Steel-E tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length4.3307
Shank diameter0.3670
Square size0.2750
Thread directionRight Hand
Thread length0.9843
Thread limitH9
Thread size in1/2-13
Thread standardUNC
Trade nameInnoForm 2-MULTI/E-SN-TiCN
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
