Emuge

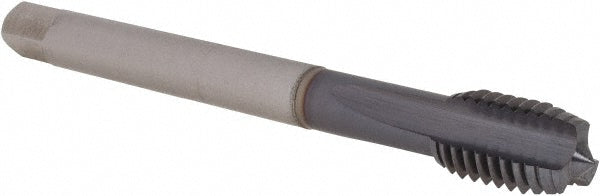

1/2-13 UNC Cobalt Machine Tap, TiCN - Emuge CU109401.5013
MFR# CU109401.5013Series Rekord A
$85.39List $101.57
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiCN
Description
The Emuge CU109401.5013 is a 1/2-13 UNC Cobalt Machine tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2BX
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum Alloy; Cast Iron; Copper Alloy; Duroplast; Steel
Number of flutes3
Overall length4.3310
OversizeNo
Shank diameter0.3670
Shank length3.3500
Square size0.2750
Tap typeMachine
Thread directionRight Hand
Thread length0.9840
Thread size in1/2-13
Thread standardUNC
