Emuge

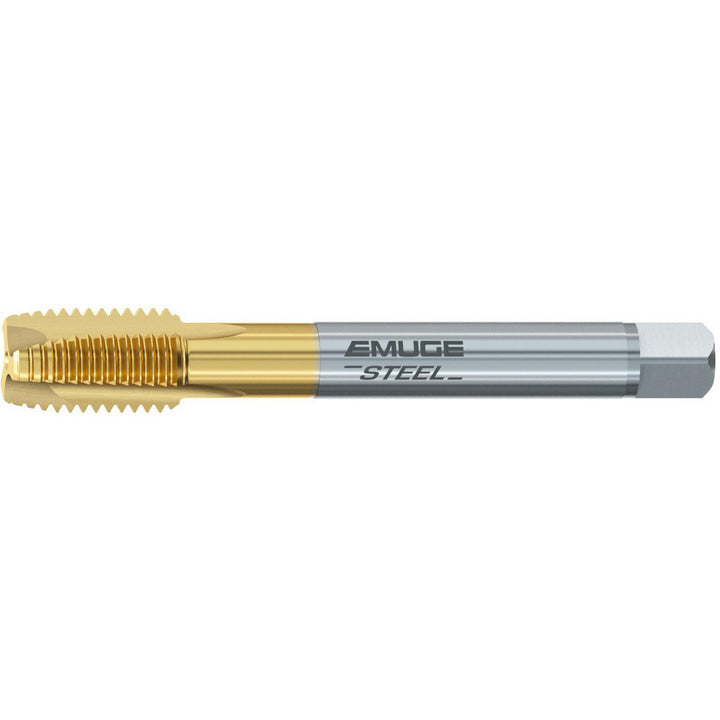

5/8-11 UNC HSS-E Cobalt Spiral Point Tap, TiN - Emuge CU208400.5015
MFR# CU208400.5015Series CU208400
$128.65List $153.02
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingTiN
Description
The Emuge CU208400.5015 is a 5/8-11 UNC HSS-E Cobalt Spiral Point tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length4.3307
OversizeNo
Shank diameter0.4800
Square size (mm)9.14
StyleSpiral Point
Threads per inch11
Thread directionRight Hand
Thread length (mm)27.00
Thread limitH6
Thread pitch0.0909
Thread size in5/8-11
Thread standardUNC
