Emuge

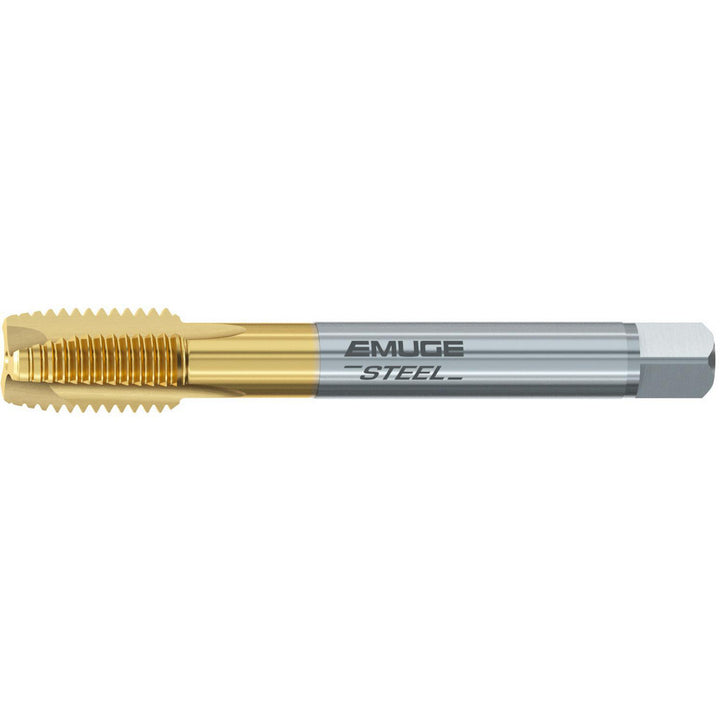

7/8-9 UNC HSS-E Cobalt Spiral Point Tap, TiN - Emuge CU208400.5017
MFR# CU208400.5017Series CU208400
$217.12List $258.25
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/8-9
CoatingTiN
Description
The Emuge CU208400.5017 is a 7/8-9 UNC HSS-E Cobalt Spiral Point tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length5.5118
OversizeNo
Shank diameter0.6970
Square size (mm)13.28
StyleSpiral Point
Threads per inch9
Thread directionRight Hand
Thread length (mm)32.00
Thread limitH7
Thread pitch0.1111
Thread size in7/8-9
Thread standardUNC
