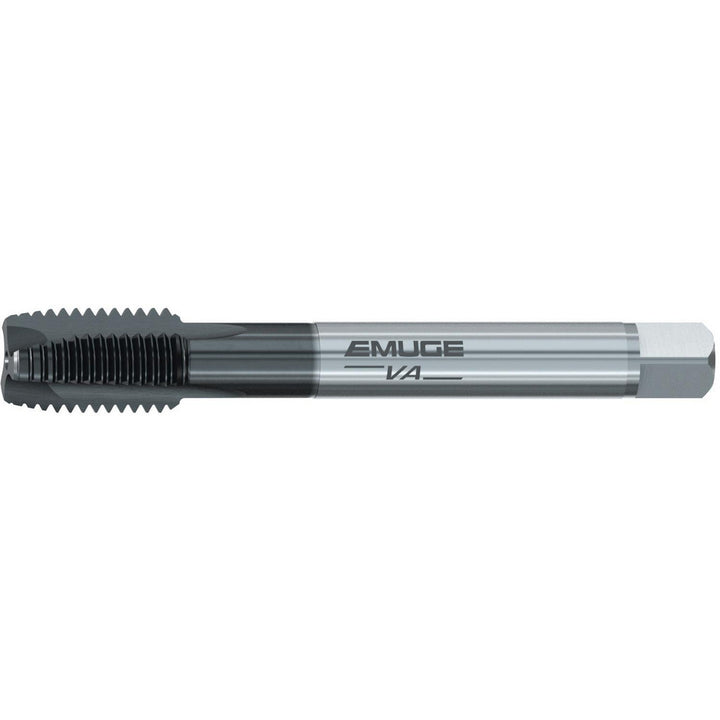

1/2-13 UNC HSS-E Spiral Point Tap, GLT-1 - Emuge CU20C300.5013
MFR# CU20C300.5013Series CU20C300
$98.58List $117.26
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingGLT-1
Description
The Emuge CU20C300.5013 is a 1/2-13 UNC HSS-E Spiral Point tap with a GLT-1 finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishGLT-1
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length4.3307
OversizeNo
Shank diameter0.3670
Square size (mm)6.99
StyleSpiral Point
Threads per inch13
Thread directionRight Hand
Thread length (mm)25.00
Thread limitH6
Thread pitch0.0769
Thread size in1/2-13
Thread standardUNC
