Emuge

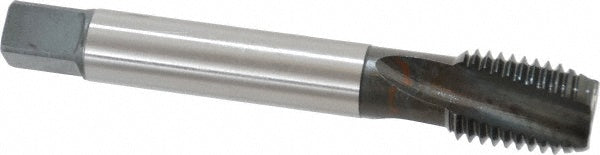

1-8 UNC Cobalt Tap, Oxide - Emuge CU456001.5018
MFR# CU456001.5018Series Rekord D-Ti
$292.47List $347.87
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1-8
CoatingOxide
Description
The Emuge CU456001.5018 is a 1-8 UNC Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length6.2990
OversizeNo
Shank diameter0.8000
Square size0.6000
Threads per inch8
Thread directionRight Hand
Thread length1.4170
Thread size in1-8
Thread standardUNC
