Emuge

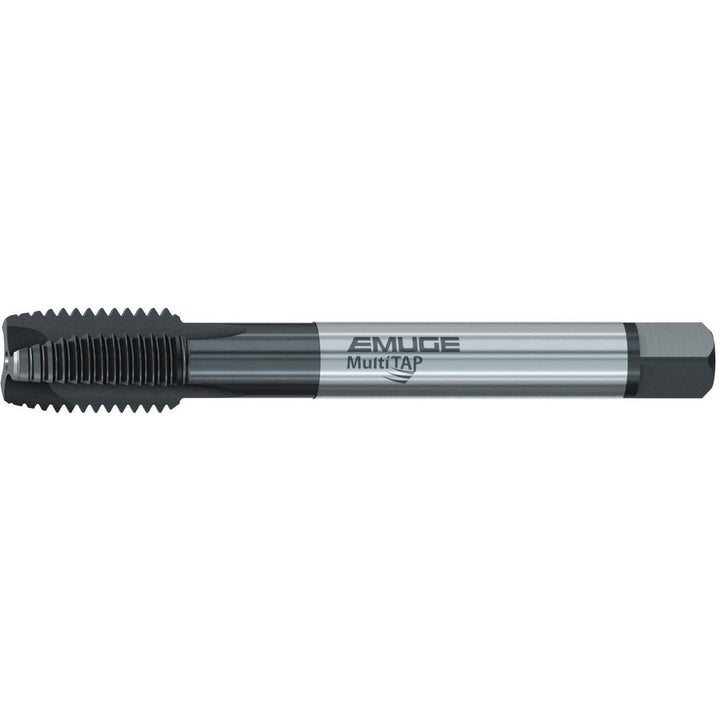

7/16-14 UNC HSS-E Cobalt Spiral Point Tap, NT2 - Emuge CU497300.5012
MFR# CU497300.5012Series CU497300
$27.62List $32.85
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
CoatingNT2
Description
The Emuge CU497300.5012 is a 7/16-14 UNC HSS-E Cobalt Spiral Point tap with a NT2 finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishNT2
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter (mm)8.20
Square size (mm)6.15
StyleSpiral Point
Threads per inch14
Thread directionRight Hand
Thread length (mm)22.00
Thread pitch0.0714
Thread size in7/16-14
Thread standardUNC
