Emuge

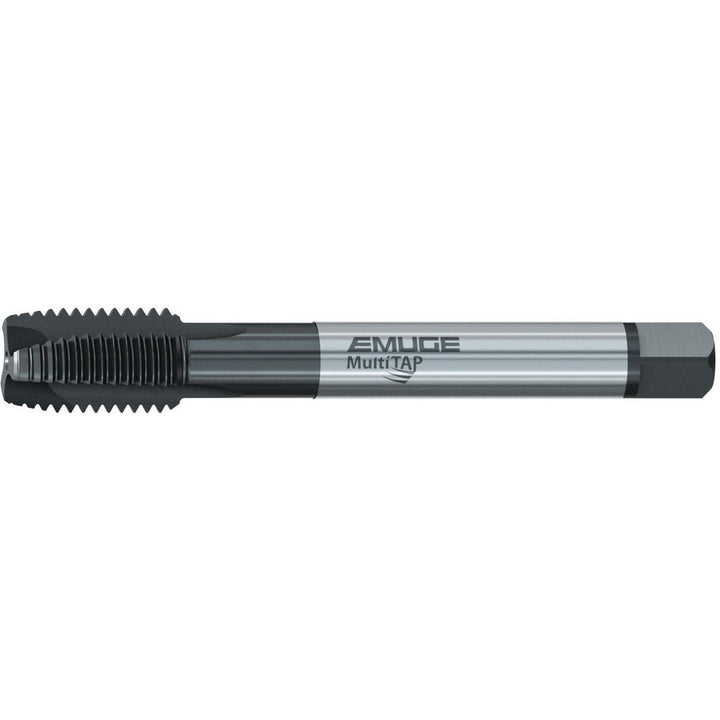

1/2-13 UNC HSS-E Cobalt Spiral Point Tap, NT2 - Emuge CU497300.5013
MFR# CU497300.5013Series CU497300
$33.24List $39.54
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingNT2
Description
The Emuge CU497300.5013 is a 1/2-13 UNC HSS-E Cobalt Spiral Point tap with a NT2 finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishNT2
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter (mm)9.32
Square size (mm)6.99
StyleSpiral Point
Threads per inch13
Thread directionRight Hand
Thread length in63/64
Thread pitch0.0769
Thread size in1/2-13
Thread standardUNC
