Emuge

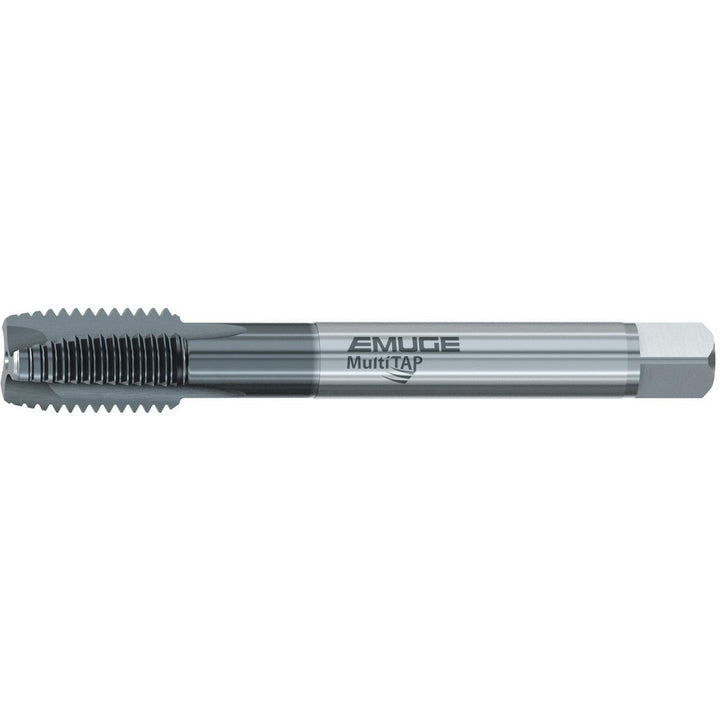

1/2-13 UNC HSS-E Cobalt Spiral Point Tap, TiCN - Emuge CU499300.5013
MFR# CU499300.5013Series CU499300
$47.05List $55.97
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiCN
Description
The Emuge CU499300.5013 is a 1/2-13 UNC HSS-E Cobalt Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length4.3310
OversizeNo
Shank diameter0.3670
Square size (mm)6.99
StyleSpiral Point
Threads per inch13
Thread directionRight Hand
Thread length in63/64
Thread pitch0.0769
Thread size in1/2-13
Thread standardUNC
