Emuge

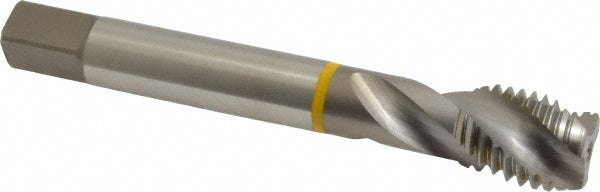

3/4-10 UNC Cobalt Tap - Emuge CU501000.5016
MFR# CU501000.5016Series Enorm
$151.77List $180.53
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
Description
The Emuge CU501000.5016 is a 3/4-10 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes3
Overall length4.9210
OversizeNo
Shank diameter0.5900
Square size0.4420
Threads per inch10
Thread directionRight Hand
Thread length0.9840
Thread size in3/4-10
Thread standardUNC
