Emuge

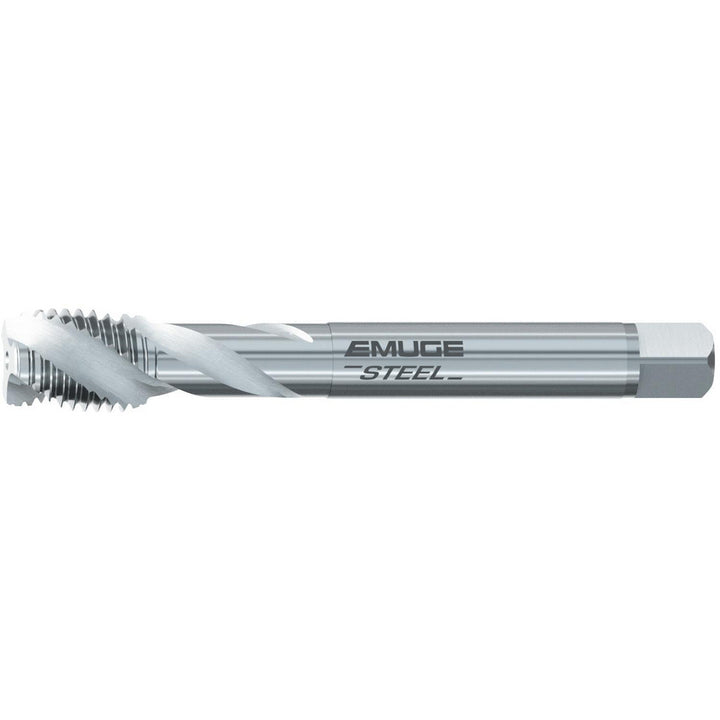

5/8-18 UNF Cobalt Tap - Emuge CU501010.5049
MFR# CU501010.5049Series Enorm
$120.58List $143.43
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
Description
The Emuge CU501010.5049 is a 5/8-18 UNF Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.4800
Square size0.3600
Threads per inch18
Thread directionRight Hand
Thread length0.5910
Thread size in5/8-18
Thread standardUNF
