Emuge

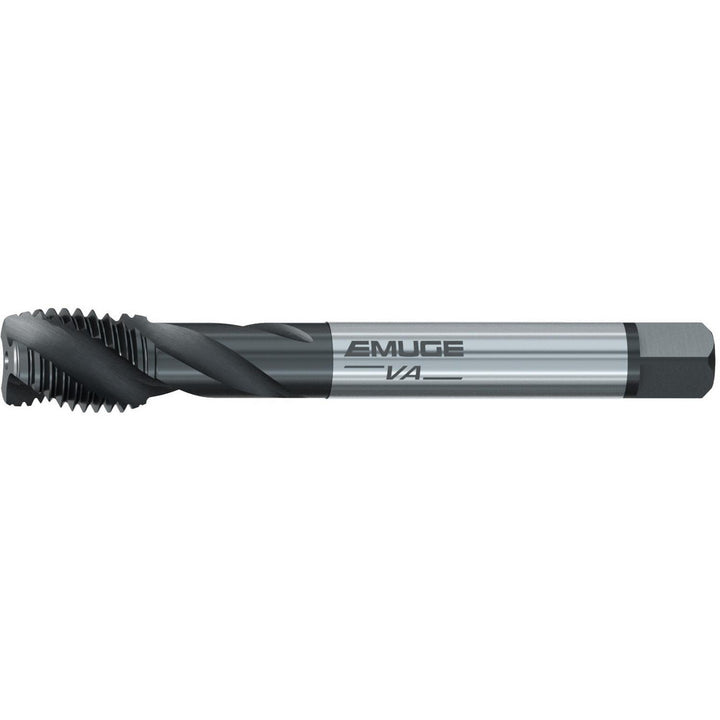

1-1/2-6 UNC Cobalt Tap, Oxide - Emuge CU503200.5022
MFR# CU503200.5022Series Enorm-VA
$612.84List $728.95
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/2-6
CoatingOxide
Description
The Emuge CU503200.5022 is a 1-1/2-6 UNC Cobalt tap with a Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes4
Overall length7.8740
OversizeNo
Shank diameter1.2330
Square size0.9250
Thread directionRight Hand
Thread length1.5750
Thread size in1-1/2-6
Thread standardUNC
