Emuge

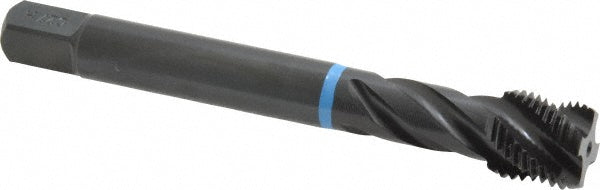

9/16-18 UNF Cobalt Tap, Oxide - Emuge CU503200.5048
MFR# CU503200.5048Series Enorm-VA
$118.31List $140.72
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-18
CoatingOxide
Description
The Emuge CU503200.5048 is a 9/16-18 UNF Cobalt tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.4290
Square size0.3220
Threads per inch18
Thread directionRight Hand
Thread length0.5910
Thread size in9/16-18
Thread standardUNF
