Emuge

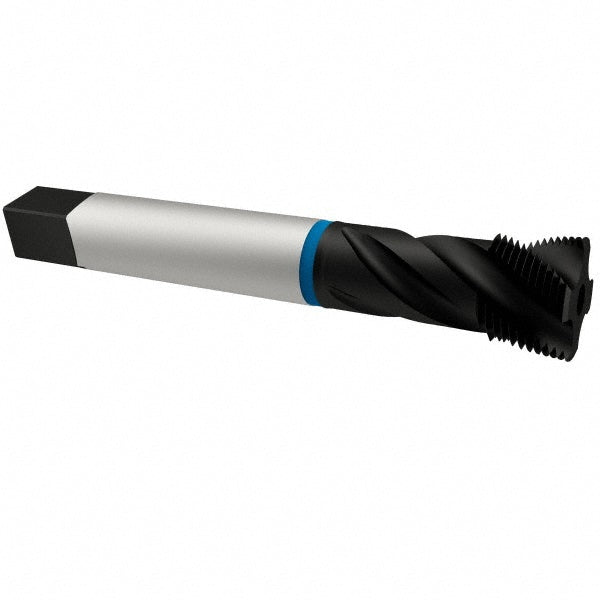

7/8-14 UNF Cobalt Tap, Oxide - Emuge CU503200.5051
MFR# CU503200.5051Series Enorm-VA
$220.02List $261.71
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-14
CoatingOxide
Description
The Emuge CU503200.5051 is a 7/8-14 UNF Cobalt tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes4
Overall length4.9210
OversizeNo
Shank diameter0.6970
Square size0.5230
Threads per inch14
Thread directionRight Hand
Thread length0.6690
Thread size in7/8-14
Thread standardUNF
