Emuge

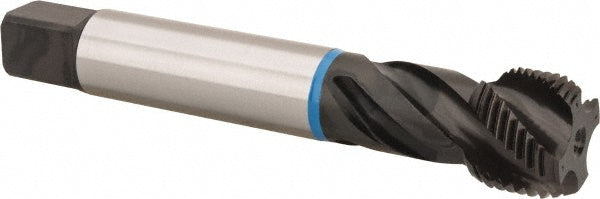

1-12 UNF Cobalt Tap, Oxide - Emuge CU503200.5052
MFR# CU503200.5052Series Enorm-VA
$257.65List $306.46
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-12
CoatingOxide
Description
The Emuge CU503200.5052 is a 1-12 UNF Cobalt tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes4
Overall length5.5120
OversizeNo
Shank diameter0.8000
Square size0.6000
Threads per inch12
Thread directionRight Hand
Thread length0.7870
Thread size in1-12
Thread standardUNF
