Emuge

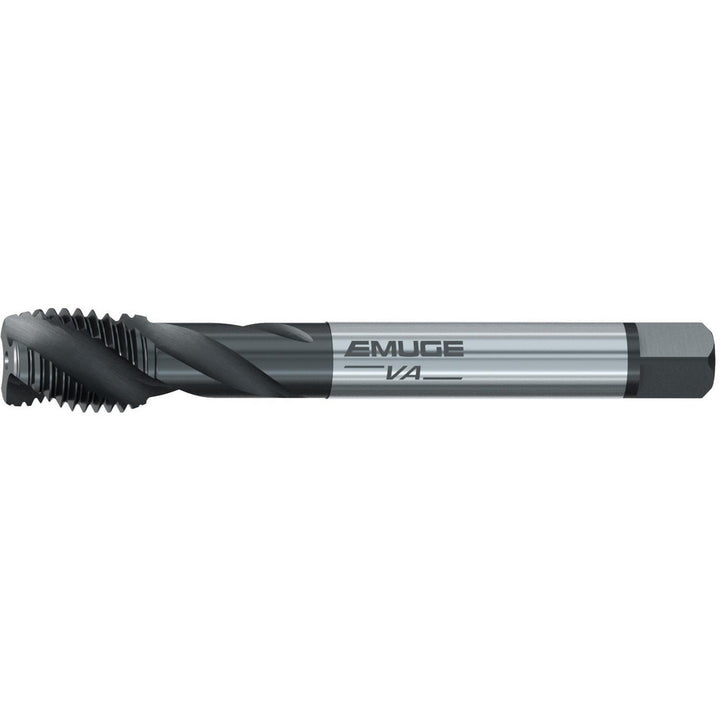

1-1/2-8 UNS Cobalt Tap, Oxide - Emuge CU503200.5253
MFR# CU503200.5253Series Enorm-VA
$598.82List $712.27
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1-1/2-8
CoatingOxide
Description
The Emuge CU503200.5253 is a 1-1/2-8 UNS Cobalt tap with a Oxide finish. 5 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes5
Overall length7.8740
OversizeNo
Shank diameter1.2330
Square size0.9250
Threads per inch8
Thread directionRight Hand
Thread length1.1810
Thread size in1-1/2-8
Thread standardUNS
