Emuge
1-1/4-7 UNC Cobalt Tap, Oxide - Emuge CU503210.5020
MFR# CU503210.5020Series Enorm-VA
$427.49List $508.48
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/4-7
CoatingOxide
Description

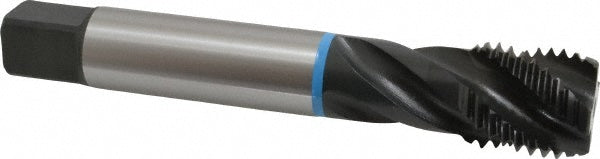

The Emuge CU503210.5020 is a 1-1/4-7 UNC Cobalt tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes4
Overall length7.0870
OversizeNo
Shank diameter1.0210
Square size0.7660
Threads per inch7
Thread directionRight Hand
Thread length1.3780
Thread size in1-1/4-7
Thread standardUNC
