Emuge

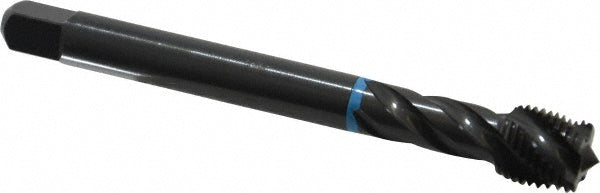

1/2-20 UNF Cobalt Tap, Oxide - Emuge CU503210.5047
MFR# CU503210.5047Series Enorm-VA
$83.78List $99.65
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/2-20
CoatingOxide
Description
The Emuge CU503210.5047 is a 1/2-20 UNF Cobalt tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch20
Thread directionRight Hand
Thread length0.5120
Thread size in1/2-20
Thread standardUNF
