Emuge

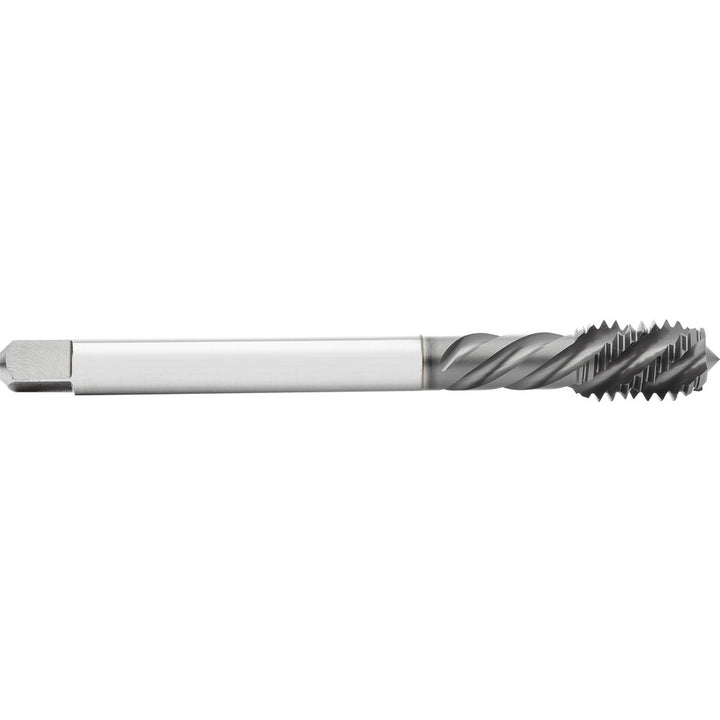

5/8-11 UNC High-Speed Steel-E Tap, GLT-1 - Emuge CU50C460.5015
MFR# CU50C460.5015Series Enorm Z
$191.98List $228.35
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingGLT-1
Description
The Emuge CU50C460.5015 is a 5/8-11 UNC High-Speed Steel-E tap with a GLT-1 finish. 4 flutes.
Specifications
Chamfer2-3 P
Class of fit3B
Coating finishGLT-1
Coolant throughNo
Flute directionLeft Hand
Helix angle45
MaterialHigh-Speed Steel-E
Material applicationLow-Tensile Strength Material
Number of flutes4
Overall length4.3310
Shank diameter0.4800
Thread directionLeft Hand
Thread limitX
Thread size in5/8-11
Thread standardUNC
