Emuge

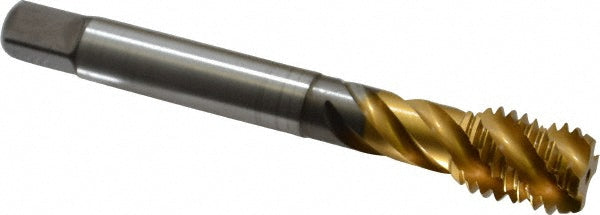

5/8-11 UNC Cobalt Tap, TiN - Emuge CU513700.5015
MFR# CU513700.5015Series Enorm Z
$164.71List $195.92
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingTiN
Description
The Emuge CU513700.5015 is a 5/8-11 UNC Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes4
Overall length4.3310
OversizeNo
Shank diameter0.4800
Square size0.3600
Threads per inch11
Thread directionRight Hand
Thread length0.8660
Thread size in5/8-11
Thread standardUNC
