Emuge

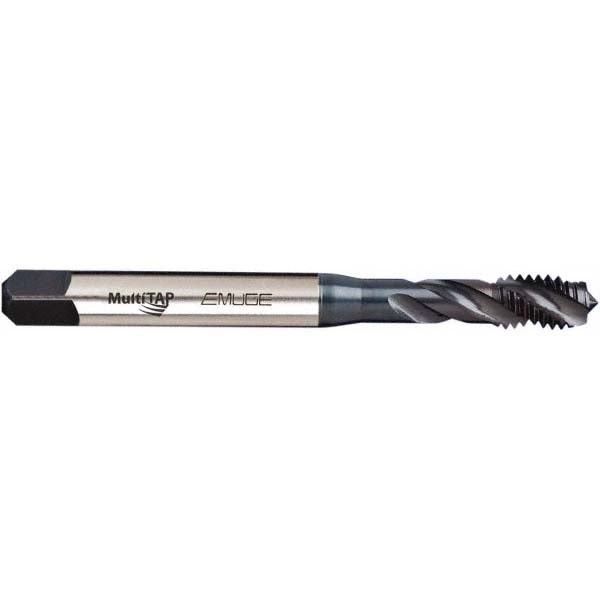

1/2-13 UNC Vanadium High-Speed Steel Tap, Oxide - Emuge CU533200.5013
MFR# CU533200.5013
$48.51List $57.70
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingOxide
Description
The Emuge CU533200.5013 is a 1/2-13 UNC Vanadium High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B/3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle38
MaterialVanadium High-Speed Steel
Number of flutes3
Overall length3.9370
OversizeNo
Thread directionRight Hand
Thread size in1/2-13
Thread standardUNC
