Emuge

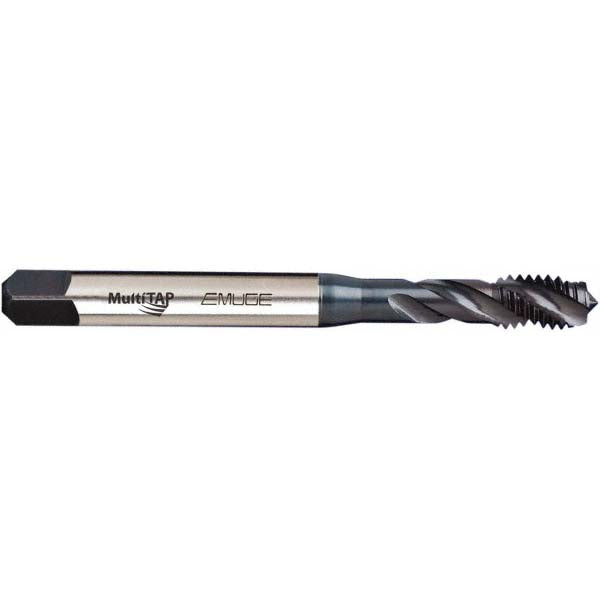

3/4-10 UNC Vanadium High-Speed Steel Tap, Oxide - Emuge CU533200.5016
MFR# CU533200.5016Series Enorm
$113.31List $134.77
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingOxide
Description
The Emuge CU533200.5016 is a 3/4-10 UNC Vanadium High-Speed Steel tap with a Oxide finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle38
MaterialVanadium High-Speed Steel
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes4
Overall length4.9210
OversizeNo
Shank diameter0.5900
Square size0.4420
Threads per inch10
Thread directionRight Hand
Thread length1.1810
Thread size in3/4-10
Thread standardUNC
