1/2-13 UNC High-Speed Steel-E Tap, TiN - Emuge CU921400.5013
MFR# CU921400.5013Series CU921400
$116.55List $138.63
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-13
CoatingTiN
Description

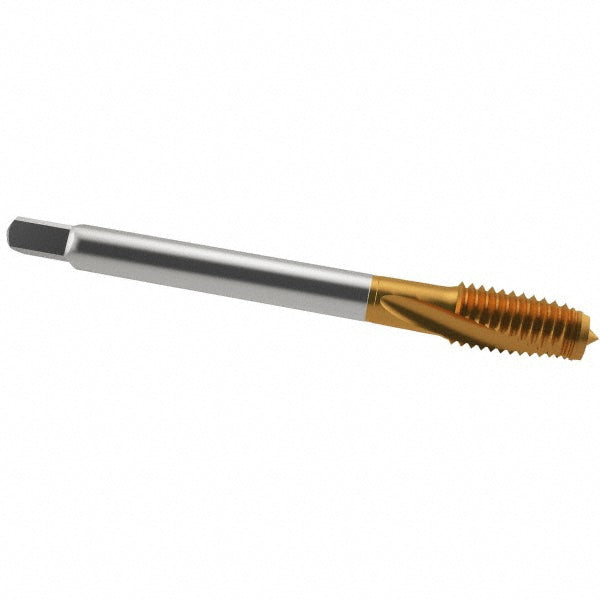

The Emuge CU921400.5013 is a 1/2-13 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length4.3307
Shank diameter0.3670
Square size0.2750
Thread directionRight Hand
Thread length0.9843
Thread size in1/2-13
Thread standardUNC
Trade nameDruck 2-STEEL-SN-TiN
