Emuge

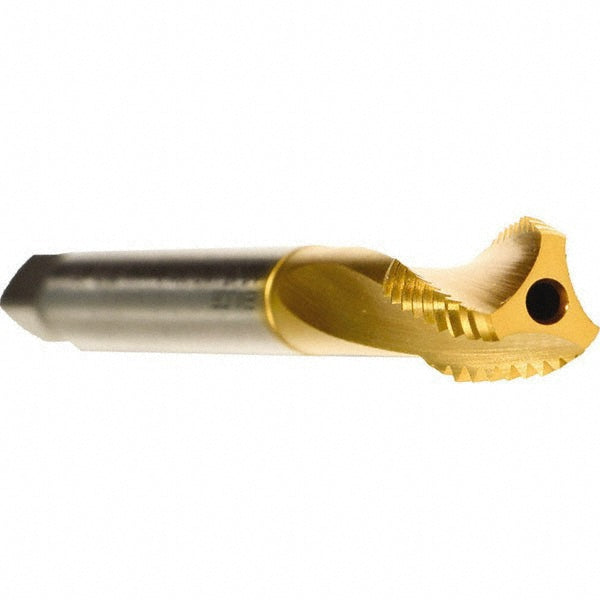

3/4-10 UNC Cobalt Tap, TiN - Emuge CU973701.5016
MFR# CU973701.5016Series Rekord D
$244.58List $290.92
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
CoatingTiN
Description
The Emuge CU973701.5016 is a 3/4-10 UNC Cobalt tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationAluminum Alloy; Cast Iron; Copper Alloy; Stainless Steel; Steel
Number of flutes3
Overall length4.9210
OversizeNo
Shank diameter0.5900
Shank length3.7400
Square size0.4420
Threads per inch10
Thread directionRight Hand
Thread length1.1810
Thread size in3/4-10
Thread standardUNC
