Emuge

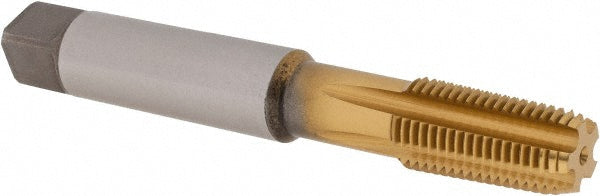

1/4-18 NPT Cobalt Tap, TiN - Emuge CW181400.5765
MFR# CW181400.5765Series KEG
$75.26List $89.51
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1/4-18
CoatingTiN
Description
The Emuge CW181400.5765 is a 1/4-18 NPT Cobalt tap with a TiN finish. 5 flutes.
Specifications
ApplicationBlind & Through-Hole Threading
ChamferModified Bottoming
Coating finishTiN
MaterialCobalt
Material applicationBrass; Cast Iron; Steel
Number of flutes5
Overall length3.9370
Shank diameter0.5625
Square length1.4210
Square size0.4210
Threads per inch18.0
Thread length1.0600
Thread size in1/4-18
Thread standardNPT
