Emuge

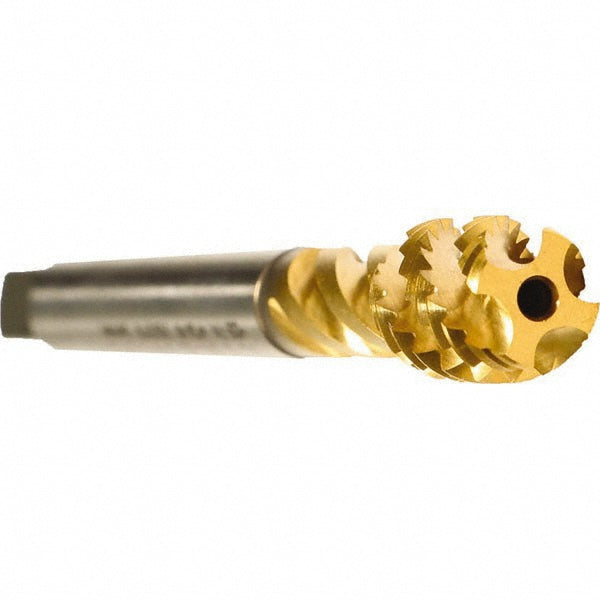

5/8-11 UNC Cobalt Tap, TiN - Emuge CW553700.5015
MFR# CW553700.5015Series Enorm
$200.32List $238.27
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingTiN
Description
The Emuge CW553700.5015 is a 5/8-11 UNC Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Alloy; Cast Iron; Copper; Copper Alloy; Stainless Steel; Steel
Number of flutes4
Overall length4.3310
OversizeNo
Shank diameter0.4800
Shank length3.4650
Square size0.3600
Threads per inch11
Thread directionRight Hand
Thread length0.8660
Thread size in5/8-11
Thread standardUNC
