Emuge

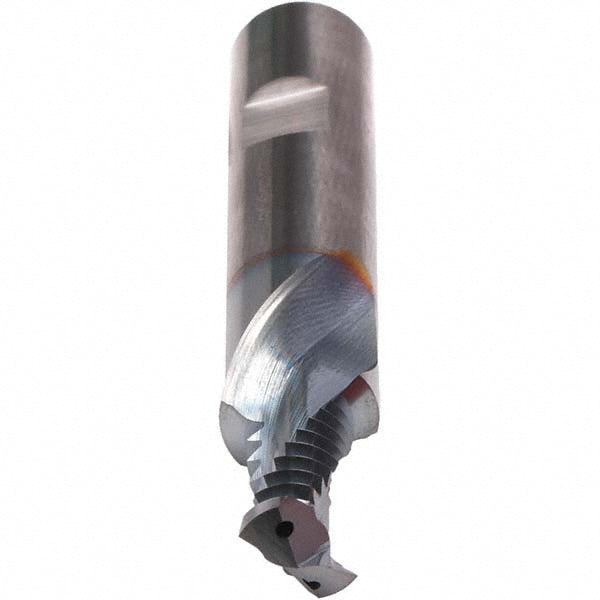

Helical Flute Thread Mills - Emuge GF422206.5010
MFR# GF422206.5010
$550.72List $706.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-18
CoatingTiCN
Description
The Emuge GF422206.5010 helical flute thread mills.
Specifications
Coating finishTiCN
Coolant throughYes
Cutting diameter0.2600
Flute directionRight Hand
Length of cut0.4470
MaterialSolid Carbide
Minimum nominal diameter in0.3125
Number of flutes2
Overall length2.9130
Shank diameter (mm)10.00
Shank length1.5750
Teeth per inch18
Thread size in5/16-18
Thread standardUNC
Thread typeInternal
