Everede Tool

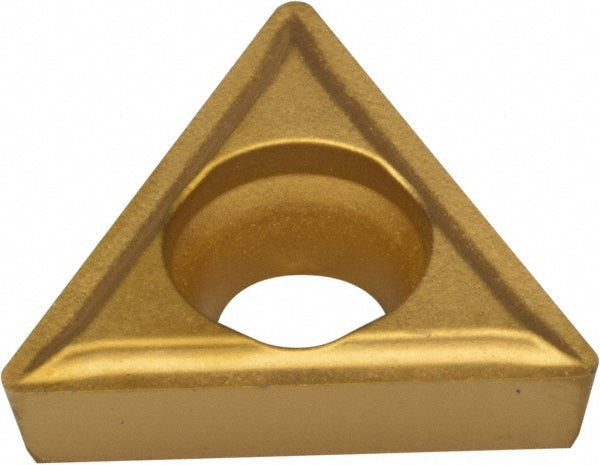

TPGH 110204 Solid Carbide Insert, Grade TL120, TiAlN - Everede Tool TPGH-215-TL120
MFR# TPGH-215-TL120ISO/ANSI# TPGH 110204Series TPGH
$13.03List $15.23
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTL120
MaterialSolid Carbide
CoatingTiAlN
Description
The Everede Tool TPGH-215-TL120 is a TPGH 110204 solid carbide indexable insert, grade TL120, TiAlN coated.
Specifications
Ansi codeTPGH-21.51
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code215
Insert styleTPGH
Iso codeTPGH 110204
Manufacturer gradeTL120
Material gradeC1
Relief angle11
ShapeTriangle
StandardsANSI; ISO
Thickness in3/32
