1/2-20 in; 1/2-20 Positioning Stop - Fairlane TBU-0500X2-S

Fairlane

1/2-20 in; 1/2-20 Positioning Stop - Fairlane TBU-0500X2-S

MFR# TBU-0500X2-S

$25.27List $31.72 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingBlack Oxide

Description

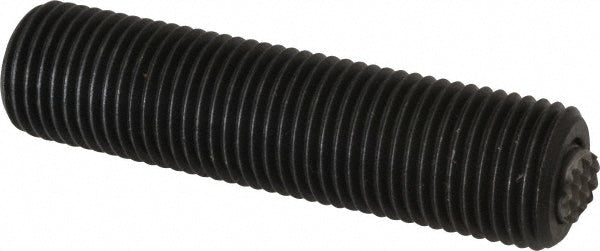

The Fairlane TBU-0500X2-S is a 1/2-20 in; 1/2-20 positioning stop.

Specifications

Assembly typeThreaded
Ball diameter in9/32
Ball materialHigh Speed Steel
Coating finishBlack Oxide
Contact diameter in1/4
Internal hex size in1/4
Load rating4527lb
Load rating lb4527.00
Replaceable padNo
Stand off in1/16
Thread length in2in; 2
Thread size1/2-20 in; 1/2-20
Tooth gradeSuper Fine
