Gibraltar
5/16-18 in Spring Plunger - Gibraltar 34166
MFR# 34166
$25.19List $31.61
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

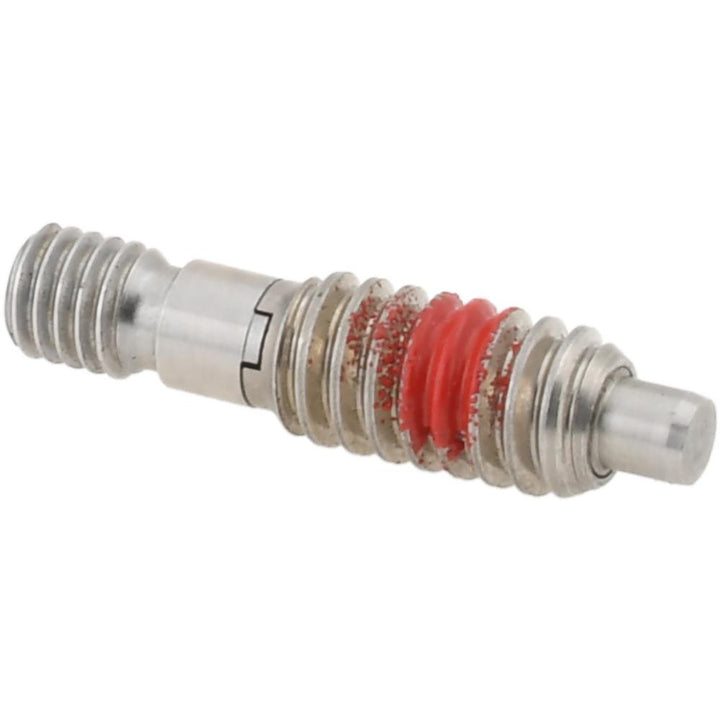

The Gibraltar 34166 is a 5/16-18 in stainless steel spring plunger.
Specifications
Final end force6lb
Final end force lb6.00
FinishZinc
Head height in11/32
Initial end force1.5lb
Initial end force lb1.50
Knob styleThreaded Stud (without Knob)
Length under head shoulder0.2190
Locking elementYes
MaterialStainless Steel
Maximum plunger diameter0.1550
Plunger diameter tolerance+0.0010
Plunger length1.4380
Plunger projection in3/16
Plunger typeNon-Locking
Stud thread size1/4-20
Thread length in5/8
Thread size5/16-18 in
