Gibraltar

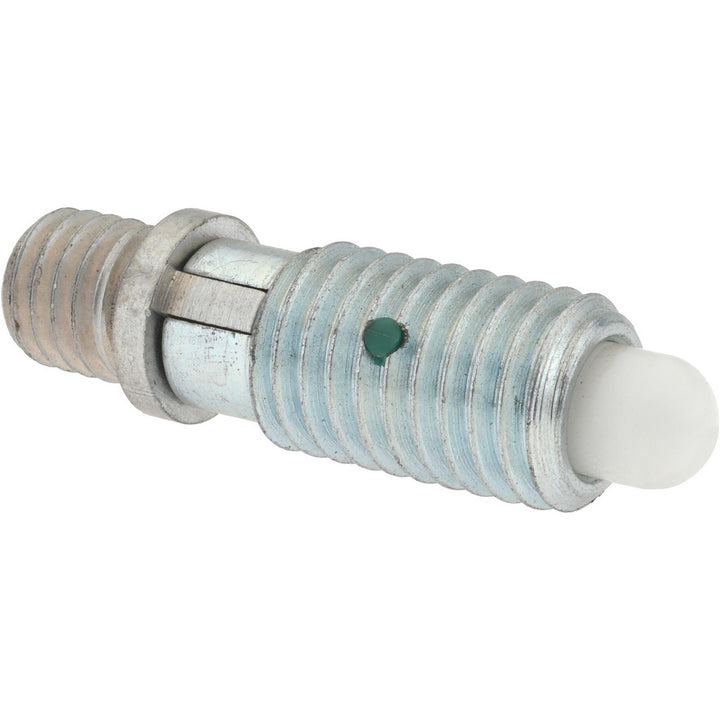

5/8-11 in Spring Plunger - Gibraltar 34240
MFR# 34240
$24.04List $30.17
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 34240 is a 5/8-11 in steel spring plunger.
Specifications
Final end force10lb
Final end force lb10.00
FinishZinc-Plated
Head height in7/16
Initial end force5lb
Initial end force lb5.00
Knob styleThreaded Stud (without Knob)
Length under head shoulder in1-5/16
Locking elementYes
MaterialSteel
Maximum plunger diameter0.3730
Plunger diameter tolerance+0.0010
Plunger length2.1860
Plunger projection in5/16
Plunger typeLocking
Stud thread size1/2-13
Thread length in1
Thread size5/8-11 in
