Gibraltar

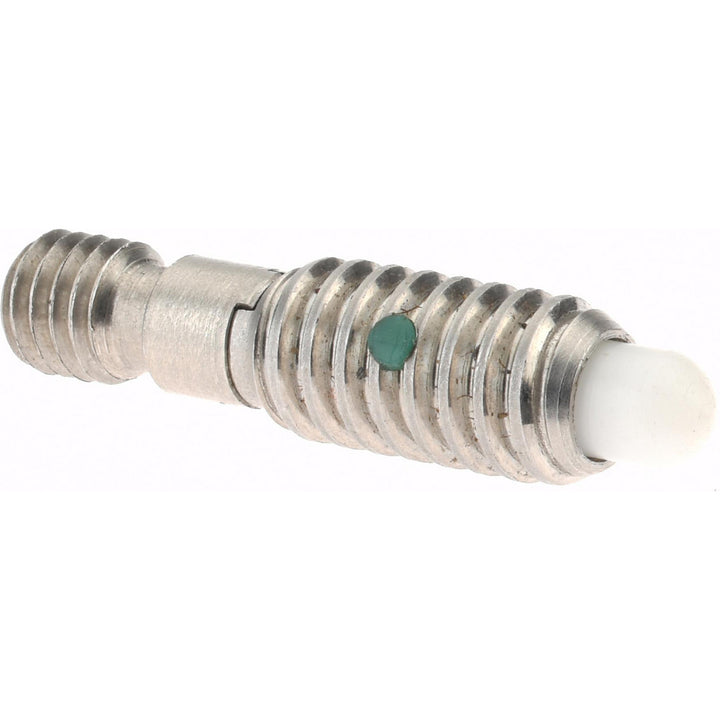

1/4-20 in Spring Plunger - Gibraltar 34250SS
MFR# 34250SS
$27.43List $34.43
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 34250SS is a 1/4-20 in stainless steel spring plunger.
Specifications
Body length0.6250
Final end force5lb
Final end force lb5.00
FinishZinc-Plated
Head height in15/64
Initial end force1lb
Initial end force lb1.00
Knob styleThreaded Stud (without Knob)
Length under head shoulder0.1250
Locking elementYes
MaterialStainless Steel
Maximum plunger diameter0.1440
Plunger diameter tolerance+0.0010
Plunger length1.0620
Plunger projection in1/8
Plunger typeNon-Locking
Stud thread size10-32
Thread length in1/2
Thread size1/4-20 in
